HXA198HO alternator for NISSAN NAVARA 3.0L ZD30 [12/01 - 01/08]

Low stock! Only 2 left
$548.88
$548.88
Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

12v 150a hitachi-style high-output upgrade alternator for nissan patrol y61 zd30ddti (2007–2016), with clutch pulley and lead-acid charging profile.

The OEX range of alternators is built using OEM-quality components by ISO9001-certified manufacturers with deep experience supplying OE and aftermarket markets. Each unit is engineered, tested and quality-controlled against stringent procedures so you have peace of mind that the alternator you fit will perform reliably for the long haul.

  • Voltage: 12V
  • Output: 150A high-output upgrade (replaces 90A original)
  • Application: NISSAN PATROL Y61 IV D 3.0L ZD30DDTi 08/2007 – 12/2016
  • Suits common rail applications 2007–2016 only
  • Mount: Twin Leg, 169mm centre-to-centre
  • Inside mounting legs: 81mm
  • Pulley: 60mm OD, 7 groove (clutch type)
  • Adjusting hole diameter: M8x1.25
  • Pivot hole diameter: 10.5
  • Pin code: IR49
  • Regulator: Internal
  • OEM Number: HXA198

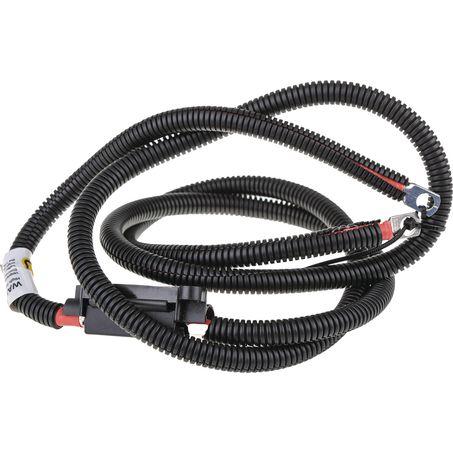

  • Upgrade cable and fuse included
  • Lead-acid battery charging (BC-DC charger required for lithium)
  • Weight: 5.86 kg

Specifications

Voltage 12
Power Rating 150A (High Output)
Suits Unit Make Hitachi
Application Nissan Patrol Y61 ZD30DDTi 08/2007 – 12/2016
Regulator Type Internal
Pulley OD 60mm
Pulley Section 7 Groove
Pulley Type Clutch
Pin Code IR49
Alternator Mount Twin Leg
Mount C-C 169mm
Inside Mounting Legs 81mm
Adjusting Hole M8x1.25
Pivot Hole 10.5
OEM Number HXA198
Battery Type Lead-Acid (BC-DC charger required for lithium)
Included Upgrade cable and fuse
Weight 5.86 kg
Condition New
Warranty 3yr Passenger / 1yr Commercial

Important: High-output upgrade unit. Only suits common rail applications 2007–2016 — primarily Nissan Patrol Y61 IV D 3.0L ZD30DDTi 08/2007 – 12/2016. Check battery terminal position against the original before fitment. Upgrade cable and fuse are included. This alternator is designed to charge lead-acid batteries directly; lithium batteries must be charged via a BC-DC charger.

Professional installation recommended. Confirm voltage, output, pulley type and mounting against the original unit before fitment.
