HXA009 alternator for CASE IH CX135 4.3L BB-4BG1T [01/05 - 12/07]

Low stock! Only 2 left
$738.88
$738.88
Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

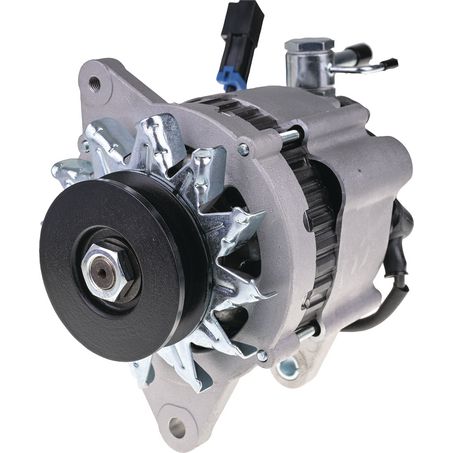

The OEX HXA009 is a 24V 35A Hitachi-style alternator fitted with a 30cc vacuum pump and twin-leg mount, designed for heavy-duty 24-volt diesel commercial applications.

The OEX range of alternators provides quality replacement units engineered to OE specifications. Each unit is tested for output, reliability and durability before leaving the factory.

  • 24V 35A output, Hitachi style

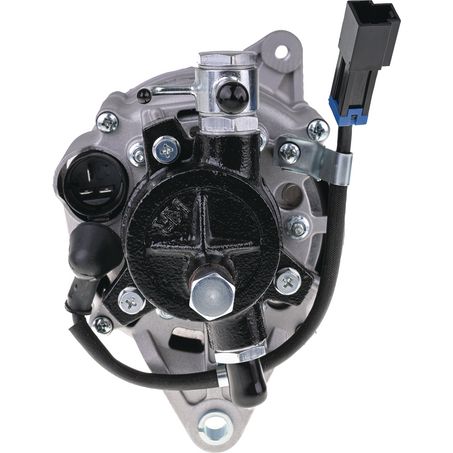

  • Integrated 30cc vacuum pump with adaptor to suit HXK-08

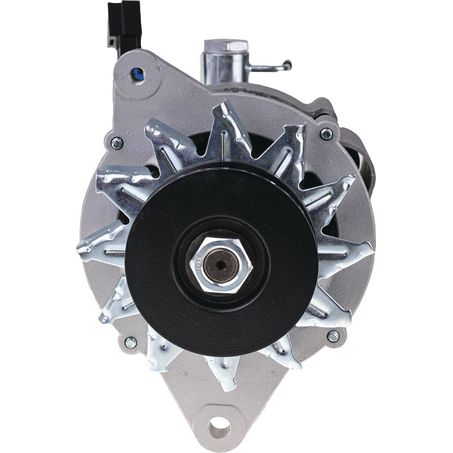

  • B-section pulley, 82mm OD
  • Internal regulator

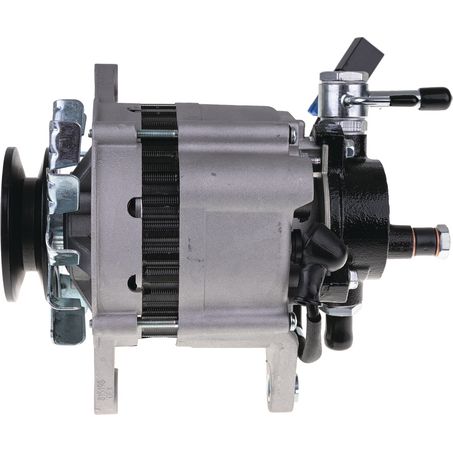

  • Twin-leg mount, 170mm centre-to-centre, 81mm inside legs
  • M8x1.25 adjusting hole, 10mm pivot
  • Pin code IR9
  • 3 year passenger / 1 year commercial warranty

Specifications

Part No. HXA009
Brand OEX
Suits Unit Make Hitachi
Voltage 24V
Power Rating 35A
Regulator Type Internal
Pulley Section B
Pulley Outside Diameter 82mm
Alternator Mount Twin Leg
Mount Centre to Centre 170mm
Inside Mounting Legs 81mm
Pivot Hole Diameter 10mm
Adjusting Hole Diameter M8x1.25
Vacuum Pump 30cc with adaptor to suit HXK-08
Pin Code IR9
New / Reman. New
Weight 5.94kg
Warranty 3yr Passenger / 1yr Commercial

Important: This unit is fitted with a 30cc vacuum pump and comes with an adaptor to suit HXK-08. Confirm the original unit also has a vacuum pump and matching adaptor configuration before fitment.
