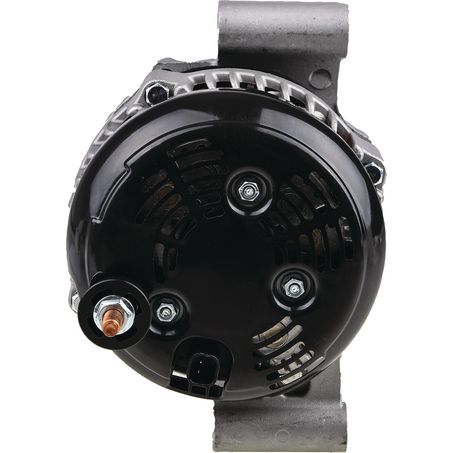

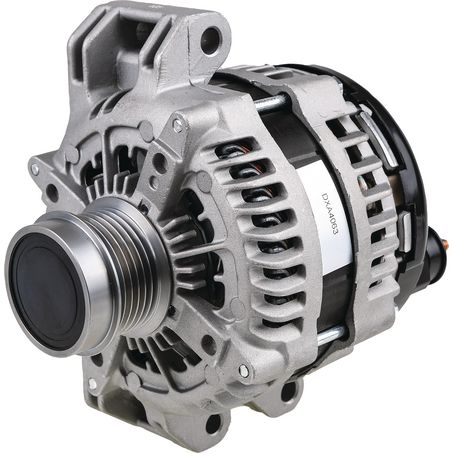

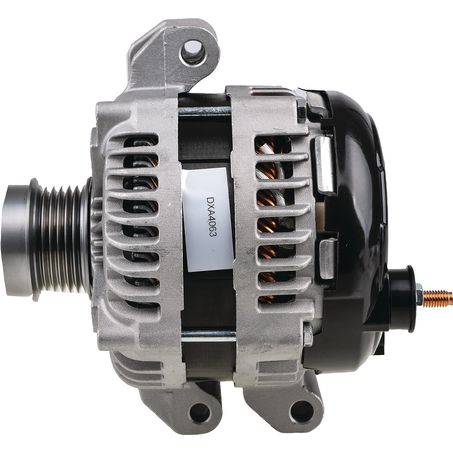

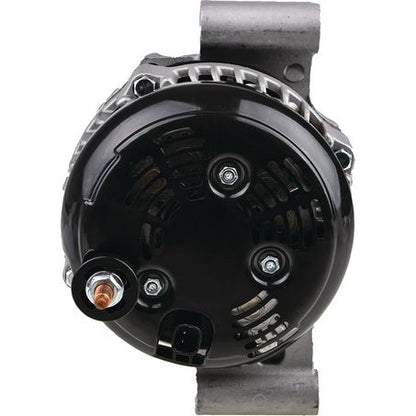

The DXA4063 is a 12 volt 180 amp Denso-style alternator with a 6 groove pulley, pad mounting, and an ER55 external regulator. Suited to OE-style replacement applications using PCM/ECU-controlled charging systems.

The OEX range of alternators is sourced from leading Original Equipment Manufacturers and aftermarket suppliers, produced in ISO9001-certified factories with rigorous engineering, testing, and quality control. Every OEX unit is backed by a comprehensive nationwide warranty for total peace of mind.

  • 6 Groove Pulley (52mm OD)

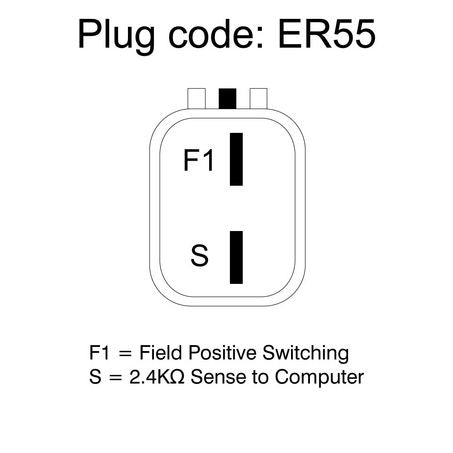

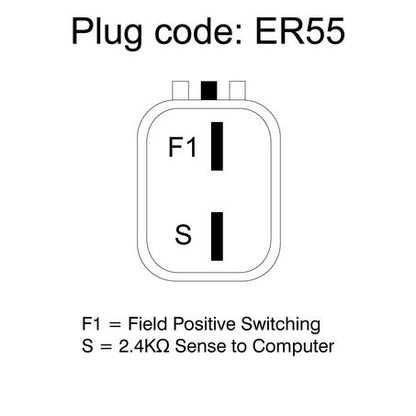

  • ER55 External regulator (F1 + S terminals)
  • Pad mount, 176mm centre (Mount Centres C)
  • F1 = Field Positive Feed from PCM/ECU
  • S = Sense to PCM (2.4K Ohms)
  • Pin Code ER55

Specifications

Voltage 12V
Output 180A
Suits Unit Make Denso
Pulley 6 Groove
Pulley OD 52mm
Regulator External (ER55)
Pin Code ER55
Mount Pad
Mount Centres C 176mm
Inside Mounting Legs 50mm
Mount Leg Thickness 60mm
Pivot Hole Diameter 9.8mm
F1 Terminal Field Positive Feed from Computer
S Terminal 2.4K Ohms Sense to Computer
Weight 7.28kg
Warranty 3yr Passenger / 1yr Commercial

Important: This unit uses an EXTERNAL ER55 regulator controlled by the vehicle PCM/ECU. F1 is Field Positive Feed from the computer; S is Sense to the computer at 2.4K Ohms. Confirm your vehicle has a compatible PCM-controlled charging system before fitment.

Always confirm voltage, output, mounting, pulley, and connector compatibility against the original unit before fitment.
