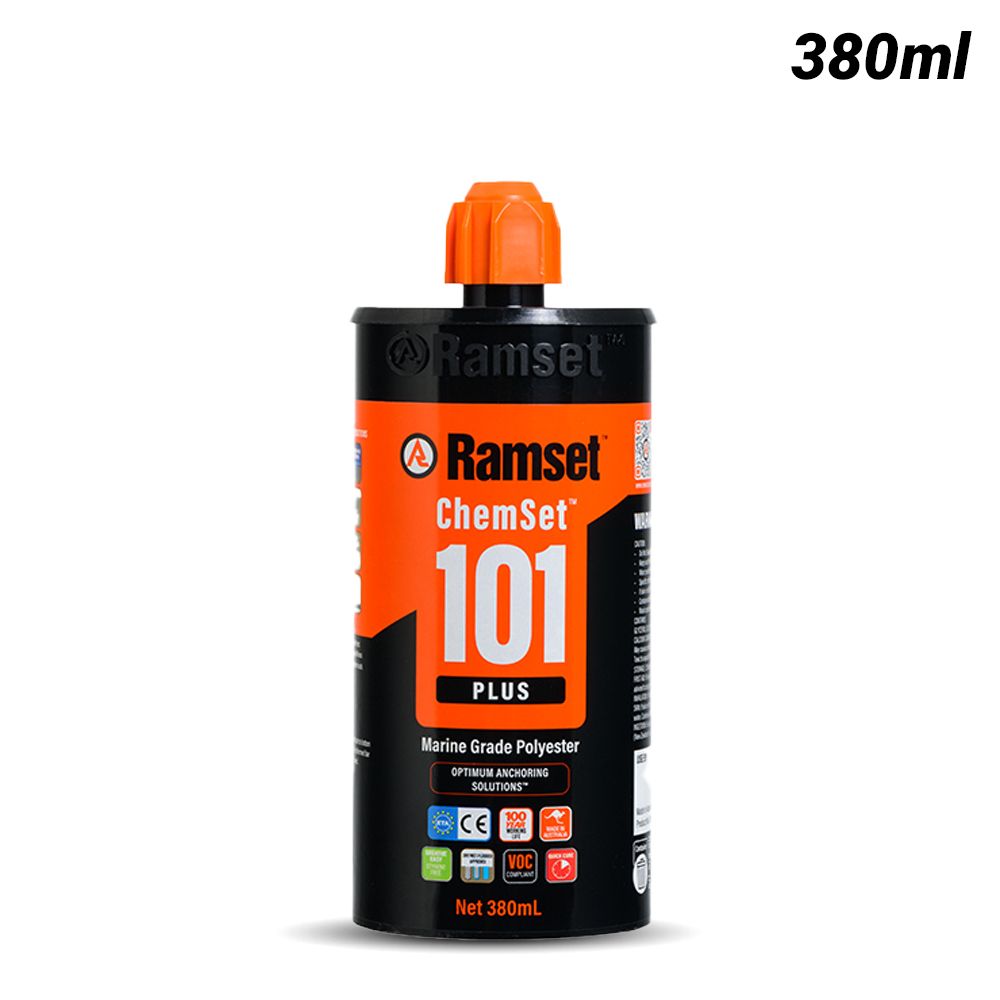

Ramset C101C (Chemset™ 101 Plus) 101 380ml Medium Duty Anchoring Injection Adhesive

Ramset C101C (Chemset™ 101 Plus) 101 380ml Medium Duty Anchoring Injection Adhesive
CHEMSET 101 PLUS is a multi-purpose Polyester adhesive for anchoring threaded studs and starter bars in solid and hollow substrates. It is formulated using high performance, marine grade resin, which allows full load capacity in flooded holes to be attained as assessed to ETAG 001-5 Option 7. CHEMSET™ 101 PLUS is styrene free and VOC compliant. Fast cure and fast dispensing for high productivity. Non-drip formula, ideal for overhead installation. Steel columns and beams, seating, machinery, facade pins, handrails, gates, starter bars, bottom plate fixing.
Features & Benefits:

Easy dispensing, even in cold weather
Sag resistant formula for horizontal holes and overhead application
Tap value to preserve contents between uses.

Key Features:

Fast Cure
Solid and hollow Substrates
Easy dispensing all year round

Specifications:

Appearance: Part A: Mauve, part B: Green, Mixed: Green / Grey
Chemical Type: Polyester
Density: 1.55kg / Litre @ 20?C Hardness> Shore D 80
Heat Distortion Temperature: Approx. 80?C
Compressive Strength (ASTM C579-01): 20 MPaWorking time (min) @ 20?C 5 to 10
Loading Time @ 20?C 90 minute s: Min Installation Temp (?C) 0Max Installation Temp (?C) 43
Min Service Temp (?C) -10Max Service Temp (?C) 80
Substrates: Solid Concrete, Solid Stone (proof loading recommended), Solid Brick, Hollow Concrete Block, Hollow Brick

Trade:

Concreter
Building Contractor
Civil Contractor
Contractor

Application:

Concreter: Starter Bars
Threaded Studs, Starter Bars, Hollow Masonry Sleeves, Remedial Wall Ties
Starter Bars Steel Fabricator Threaded Studs, Hollow Masonry Sleeves Balustrade
Contractor Threaded Studs, Hollow Masonry Sleeves Form worker Starter Bars
Bricklayer Starter Bars, Remedial Wall Ties Fitter Threaded Studs, Hollow Masonry Sleeves Seating
Threaded Studs Facade Contractor
Threaded Studs

Uses:

Machinery hold down
Structural steel connections

Raker angles
Column hold down

Seating
Hand rails
Fencing
Balustrade posts
Starter bars
Timber and steel house frame bottom plates to comply with BCA and Wind Code
Close to edge applications
Safety barriers

Installation in solid:

Drill hole to specified diameter and depth
Remove dust and debris by brushing and blowing 3 times each (if hole is wet or flooded, brush only remove water and slurry with wet / dry vacuum)
Screw mixing nozzle onto cartridge and dispense 2-3 trigger pulls of adhesive to waste until colour is green / grey with no streaks
Insert tip of Nozzle to bottom of the hole and dispense adhesive
Fill hole to about 2/3 full
Insert threaten stud or reinforcing bar with rotating motion to release trapped air
Wait until adhesive has fully cured before loading
Clean up with acetone
